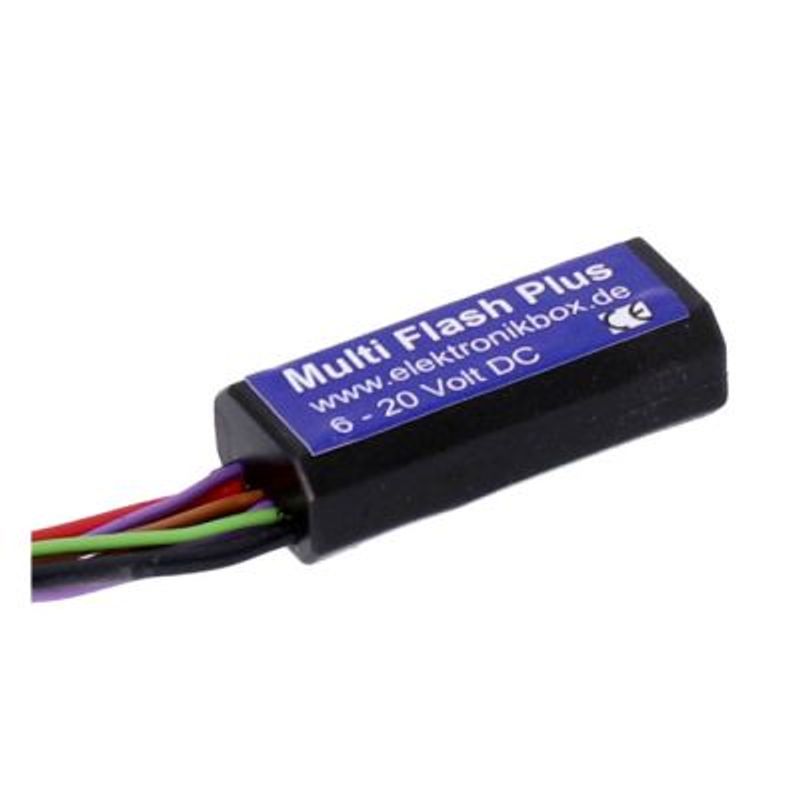

Elektronik, Multi Flash Plus

This turn signal relay module controls the turn signals via push buttons to plus 12-volt, all other Axle Joost turn signal modules switch to ground. An auto cancel function can be activated to automatically switches off the turn signal after 4 seconds, 30 seconds or to let it flash without time limit.

- Dimensions: 38 mm x 16 mm x 11 mm

- Body material: ABS with waterproof poured 2k epoxy resin

- Input voltage range: 7 - 18 Volt

- Connections: Inputs 0.14 mm², Outputs 0.75 qmm

- Maximum output power: 40 Watt / Output

- Maximum ambience temperature: 80 degree Celsius

- Auto cancel after 4 flashes, or 30sec flashing, or flashing without time limit. Depending on how long switch is pressed

- Compatible with LED / regular bulbs
